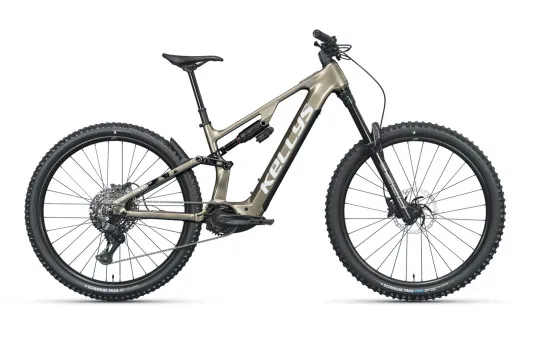

Cadre KELLYS THEOS AX-series - FLT welded technology, Al 6061-T6 / Horst-Link four-bar suspension system, 160 mm rear travel, 1.5" tapered HT, post mount 180 mm, 29" wheelset, 12x148 mm Boost thru axle
motor AVINOX M2 - Compact, High-Torque Drive Unit max 110 Nm / Boost Mode 125 Nm
battery AVINOX - Li-ion internal removable 800 Wh / 23 Ah, weight 3.74 kg
battery capacity 800 Wh
switch unit AVINOX Wireless Controller BC100, Bluetooth® 5.1 connectivity
computer display AVINOX DPC100, OLED full-color Control Display
Fourche ROCK SHOX Zeb Select (29") Boost, 170 mm, DebonAir+ / Charger RC damper
Amortisseur arrière ROCK SHOX Super Deluxe, DebonAir+ / R damper (205x65 mm)
Manivelles AVINOX (34T) - length 165 mm
Dérailleur arrière SHIMANO Deore M7230 (direct mount)
Manettes SHIMANO Deore SL-M6230-IR Rapidfire Plus (I-Spec EV)
Vitesses 11
Cassette SHIMANO Linkglide CS-LG400-11 (11-50T)
Chaîne SHIMANO Linkglide CN-LG500
Freins SHIMANO Deore M6220 Hydraulic Disc 4-piston
Lèviers de frein SHIMANO Deore BL-M6200
Moyeux NOVATEC D791SB-B15 (28 holes) front / NOVATEC D462SB-SL-B12-S3S HG, 5x sealed bearing (32 holes) rear / 6-bolt Disc
Jantes KLS Segador 30 SL Disc 622x30 (28 holes) front / 622x30 (32 holes) rear
Pneu avant SCHWALBE Magic Mary Trail Pro Radial 62-622 (29"x2.40) TLR, Soft, folding
Pneu arrière SCHWALBE Romy Trail 62-622 (29"x2.40) TLR, Mid, folding
Jeu de direction TOKEN A-BOX Aero integrated cable routing system
Potence TranzX (internal cable routing compatible with A-BOX head set) - diam 28.6 mm / bar bore 35 mm / 8°/ length 45 mm
Cintres KLS Alm/En 70 RiseBar - diam 35 mm / rise 35 mm / width 780 mm
Poignée KLS Poison Lockon
Tige de selle LIMOTEC D1 Remote Telescopic - diam 30.9 mm / travel 150 mm (S - M), 170 mm (L - XL)
Selle KLS Ascend
Taille de cadre S / M / L / XL
